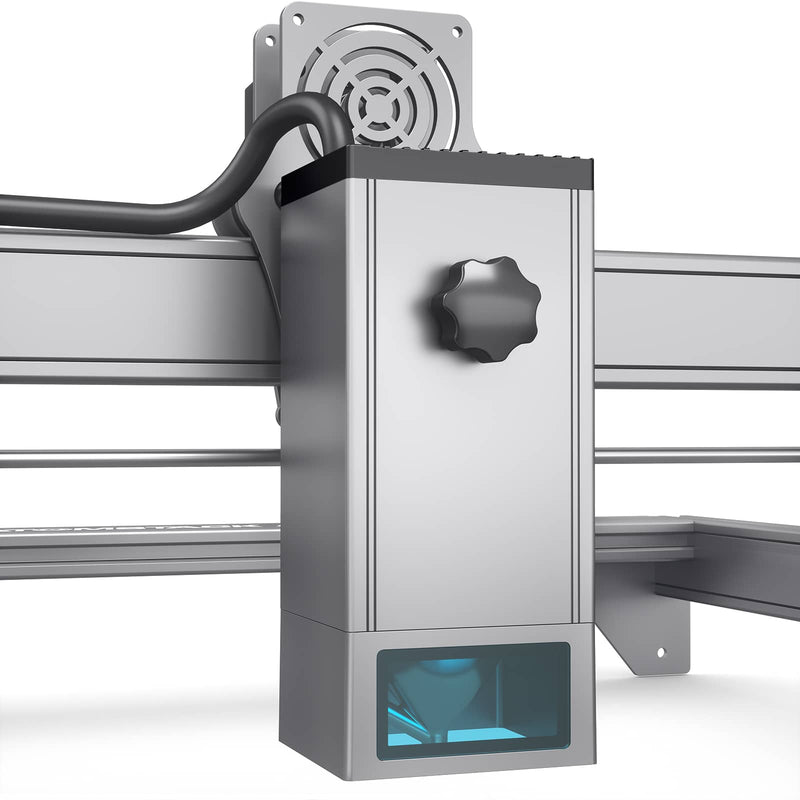

- Atomstack M100 laser module fits X7 Pro、X7 40W、A10 Pro、S10 Pro、A5 20W、A5 30W、A5 M30、A5 Pro、 A5 M40、A5 Pro+、A5 M50、A5 M50 Pro. It works on all Atomstack frame-mounted models, just replace your old laser module.
- Equipped with air-assisted system, which is extremely helpful for cutting and engraving, the M100 laser module can not only improve work efficiency, but also achieve flawless cutting. It is the best partner for your laser.
-
Engravable materials: wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplating layer, glass(if it's transparent, needs to be painted black first) and lacquered metal, after blackening Utility knife.
-
Cutable material: cardboard, non-woven fabric, veneer, acrylic, some thin plastic board.
Performance:
12mm Solid wood Cutting in One-PASS
8mm Acrylic Cutting in One-PASS
It can even cut 0.05mm thin sheet metal
* Note: Due to the 715g self-weight of the M100, there will be a little jitter when installed on a 5W or 10W engraver.
Specification:
Machine Power: 130W
Laser Power: 20W
Product Material: Aluminum 6061 Anode
Housing Size: 140*65*60mm
Circuit Board Size: 44*52mm
Circuit Board: V/PWM Modulation Board
Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens: φ6/glass
Fan: 24V
Laser Beam Mode: Spot
Working Mode: Pulse Work
Lightspot Size: 0.08*0.1mm
Working Time: 10000H
Working Temperature: 0℃~70℃
Storage Temperature: -40℃~85℃
Sintering Temperature: 2000~2400℃
Product Net Weight: 715g
