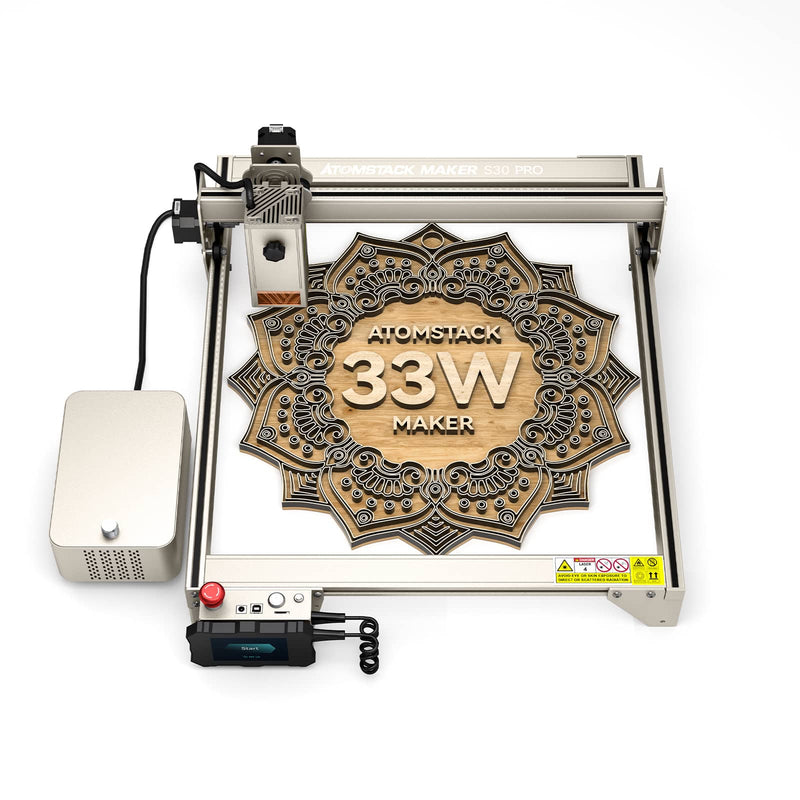

Atomstack S30 Pro is the world's first 33-36w laser power output engraving machine. Equipped with F30 pro air assist kit, the cutting capacity is greatly improved while the cutting accuracy and cutting quality can also be optimized to a great extent.
Machine Power: 160W
Electric Power: 120W
Laser Power: 33-36W
Laser Wavelength: 455±5nm
Engraving Precision: 0.01mm
Working Area: 410*400mm
Focusing Method: Fixed focus laser, no focusing
Operating Software: LaserGRBL, LightBurn
Operating System: Win XP / Win 7 / Win 8 / XP / Win 10 / Win 11 / Mac
File Format: NC, BMP, JPG, PNG, DXF
Data Transmission: USB connection, TF card
Power Input: 100-240V AC, 50/60HZ
Power Output: 24V 5A
Certification: CE FCC RoHS FDA PSE
Engravable Materials: wood, bamboo, cardboard, plastic, leather, PCB plates, aluminum oxide, non-reflective plated and lacquered layers of metal, 304 mirror stainless steel, glass, ceramics, cotton, slate.
Cuttable Materials: cardboard, non-woven fabric, wood panels, acrylic, certain thin plastic sheets, sponges.
1* Installation screws
1* Tool Kit
4* Foot pad foam
1* Focusing sheet
3* Acrylic sheet
3* Wooden sheet
10* Wire ties
1* Dustless cloth
1* Card reader
1* TF card
1* Power adapter
1* Data cable
1* Touch screen assembly
1* HDMI cable
1* Laser module
1* Cutting mat
1* X-axis assembly
1* Y-axis left profile
1* Y-axis right profile
1* Base upper profile
1* Bottom profile
3* Foot bracket
●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
