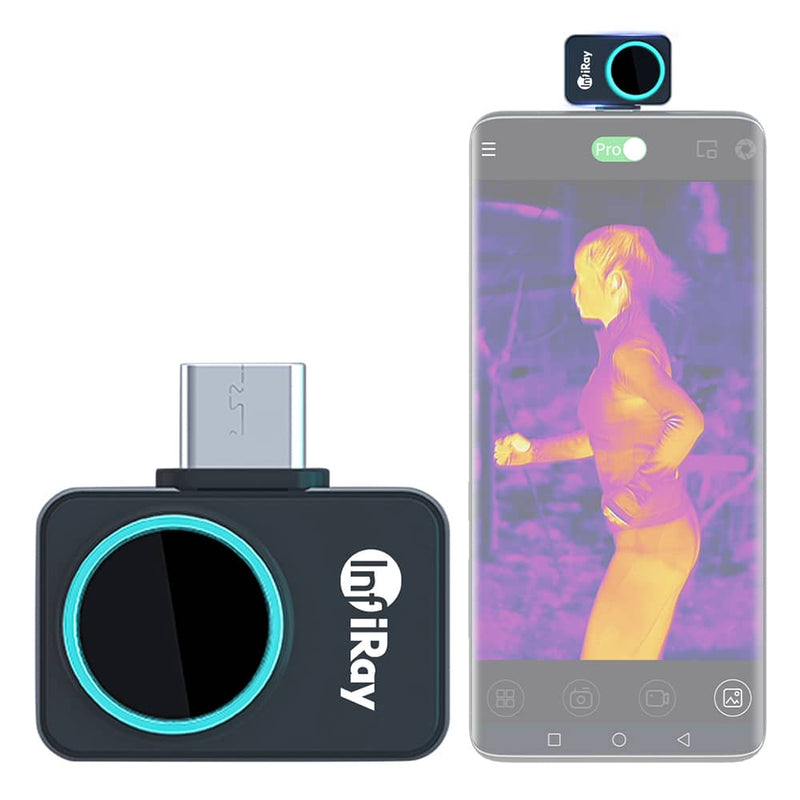

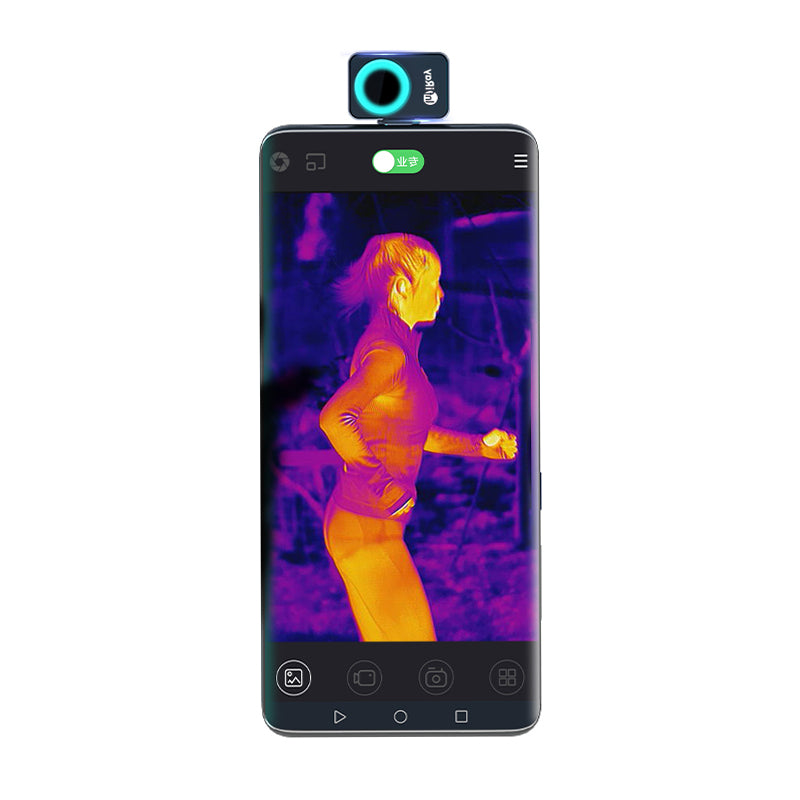

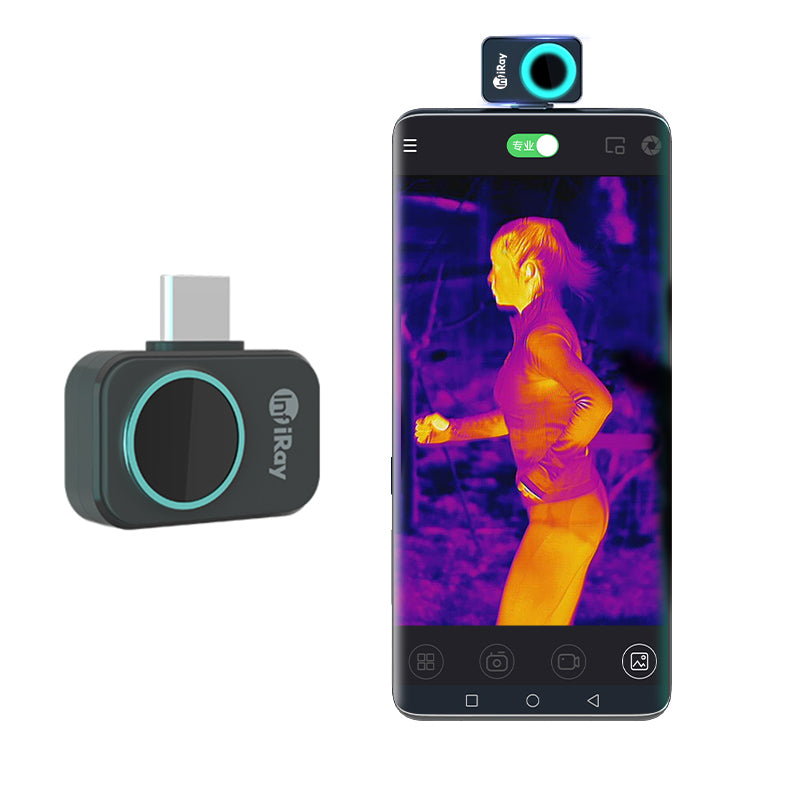

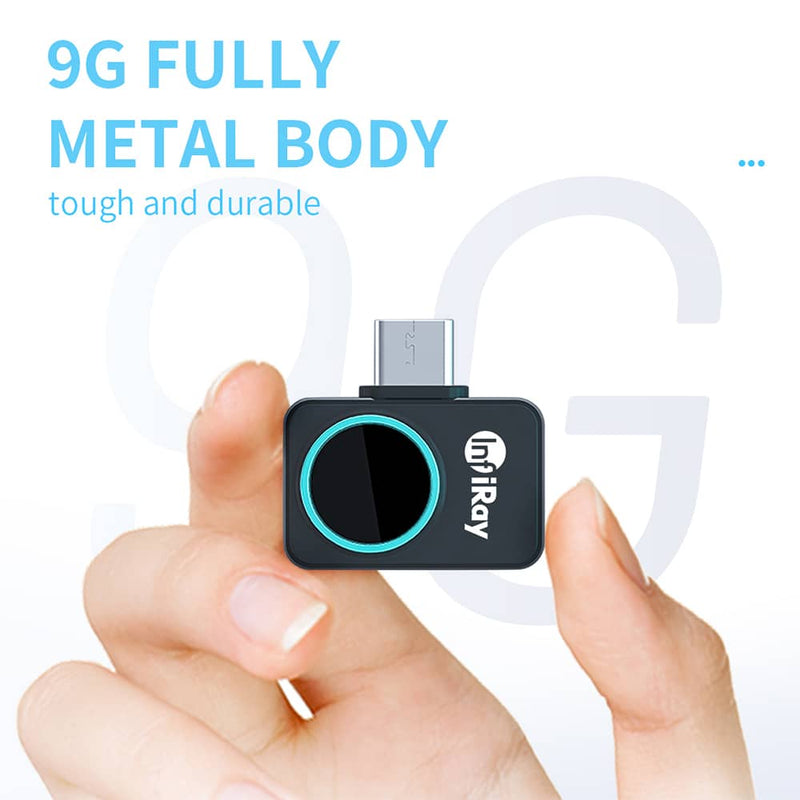

The InfiRay P2 night vision go thermal camera is the smallest infrared thermal imaging camera in the world, with 9g and 9mm thin small size, this thermographic camera is tough and durable. 256*192 high performance, fully metal superior craftsmanship, LY ASIC self-developed image processor and 49000 temperature data secondary analysis to help identify hotspots. . The InfiRay P2 thermography uses a VOx detector to provide clear images in low-light or no-light conditions where clear, accurate images are required. The P2 thermal imager supports android 6. 0 and above, easy to use with mobile and no need extra battery.

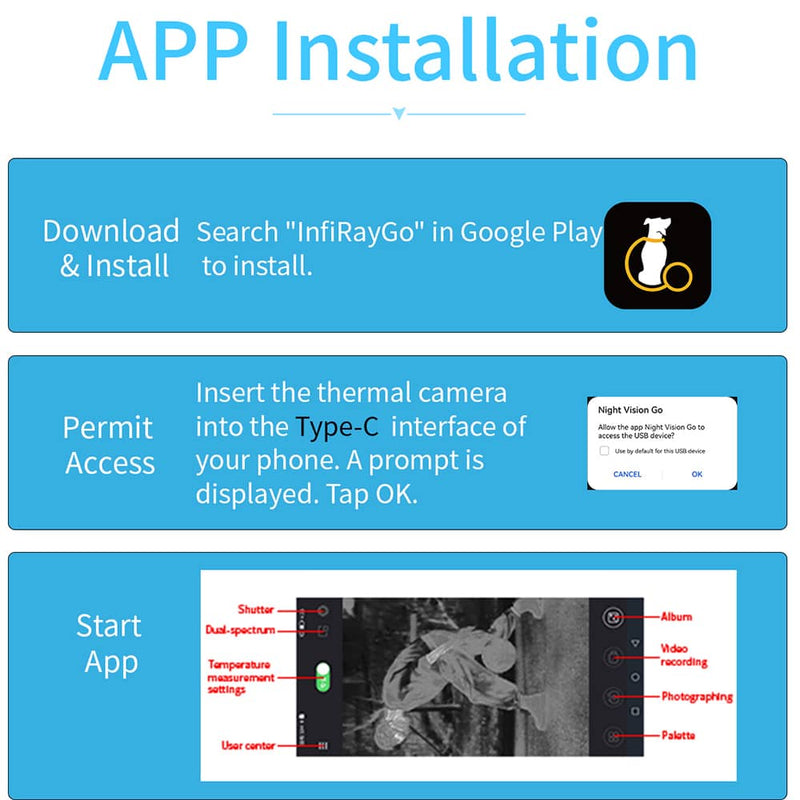

APP Download:
APP Name: Night Vision GO（P2Pro）
Detector:

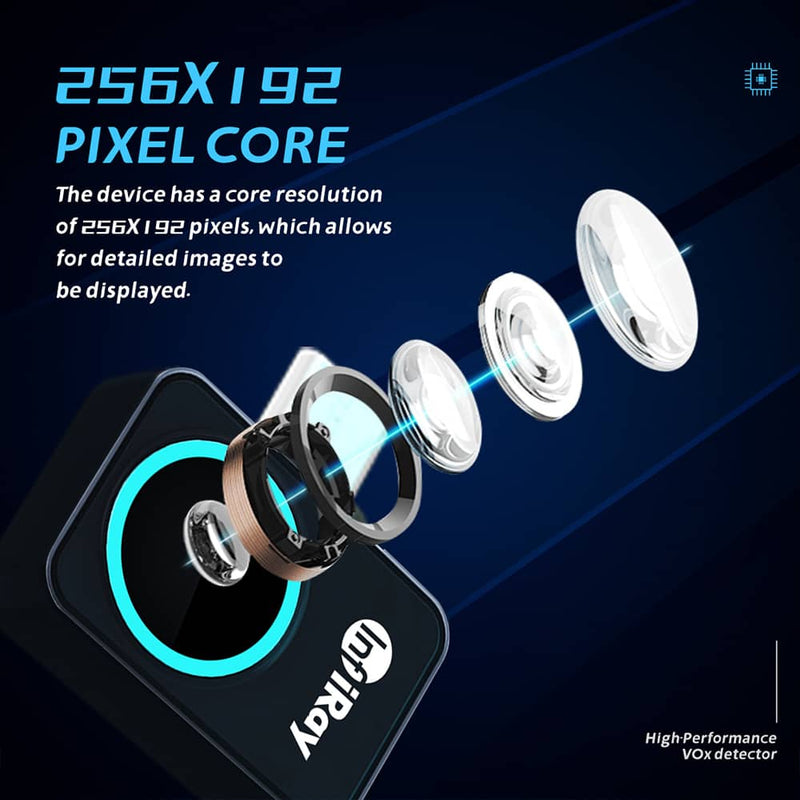

Resolution: 256x192
Pixel pitch: 12 μm
Spectral Band: 8-14 μm
NETD: <50mk@25°C, F#1.0
Performance:
Frame rate: 25Hz
Operating temperature: -10°C~+55°C
Storage temperature: -40°C~+85°C
Power consumption: 350mW
Processor: Self-developed ASIC chip
Lens:
Focal length: 3.2mm
Aperture: F1.1
FOV: 56.0°x 42.2°
Focusing mode: athermalized fixed focus lens
Temperature measurement:
Measuring range: -20°C~170°C
Measuring error: ± 2°C (± 2°C of reading, the greater shall prevail)
Temperature correction: emissivity, distance, environmental temperature
Shell:

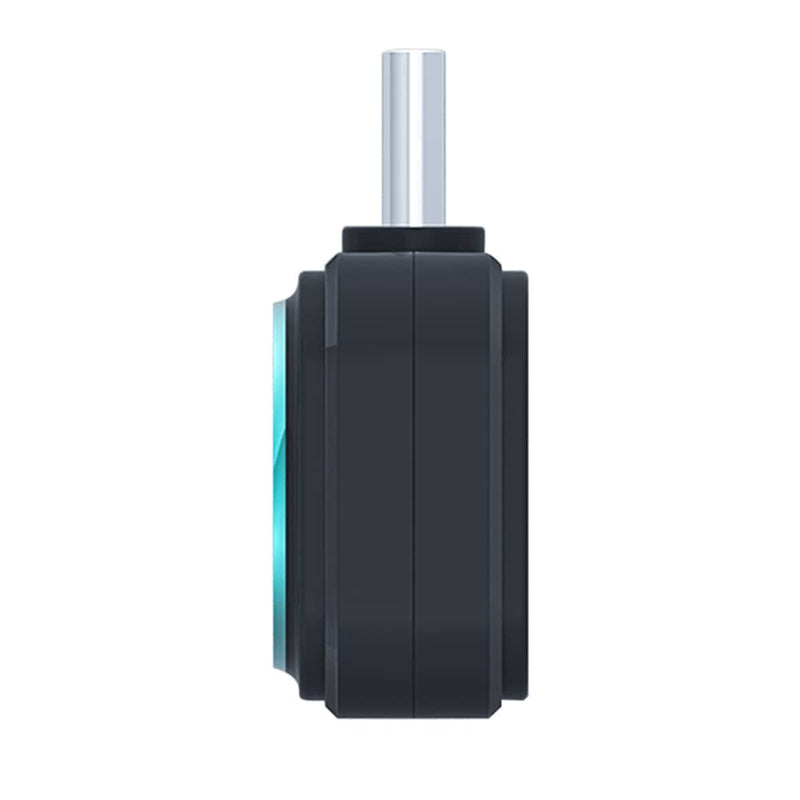

Size: 27x18x9.8(mm)
Color: Silver
Weight: 9g

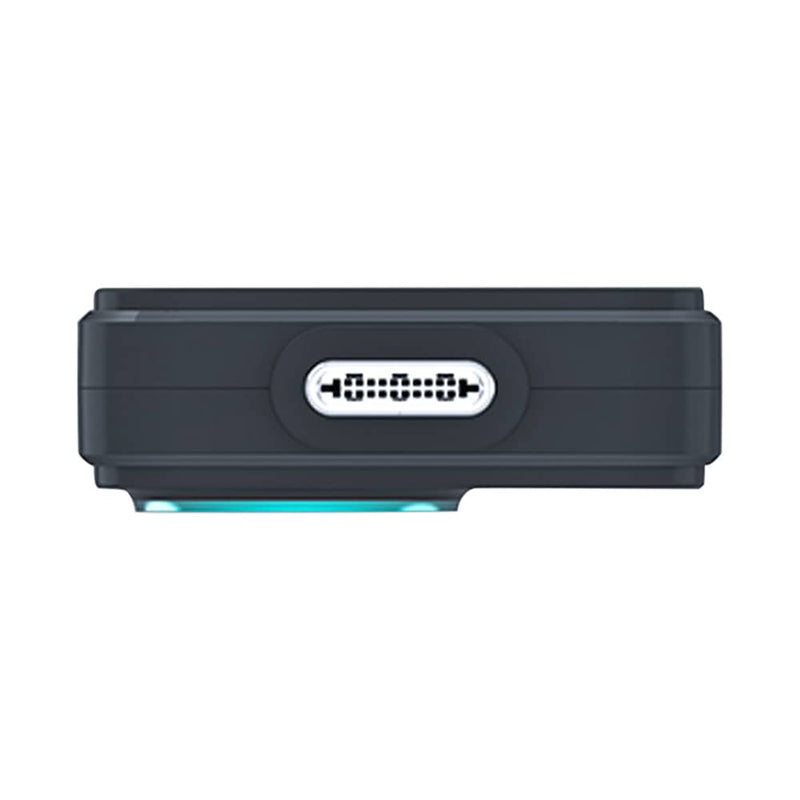

Control Interface: USB type C
Software Function:
Palettes: White/Black hot and 6 color palettes
Measurement Mode: Point/Line/Area temperature measurement
Information Sharing: Instant picture sharing
Data Analysis: Secondary temperature analysis and processing if images
Imaging Tool: Android 6.0 and above
Software Update: Online update
