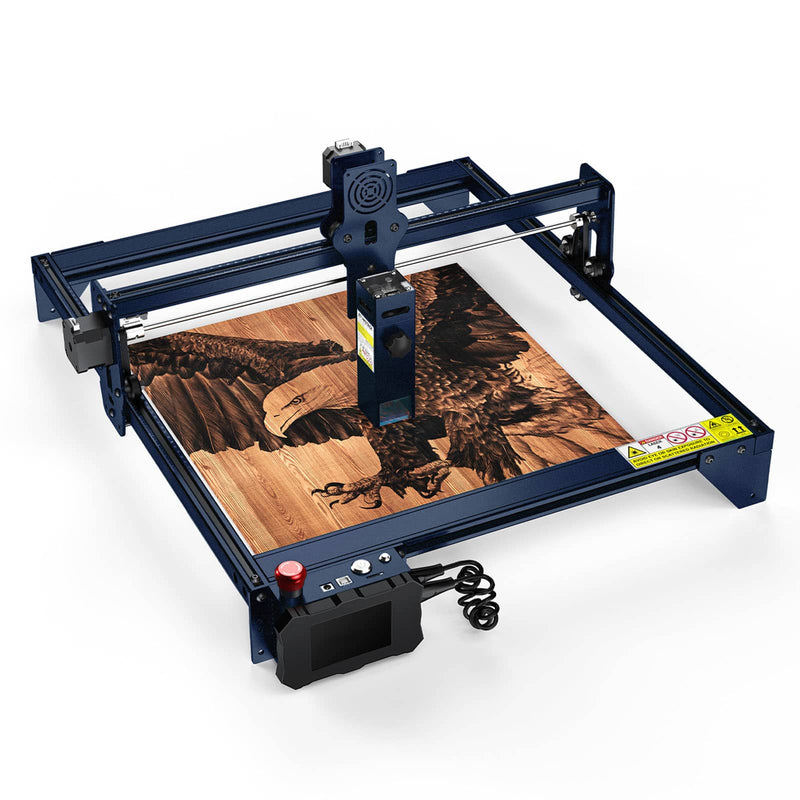

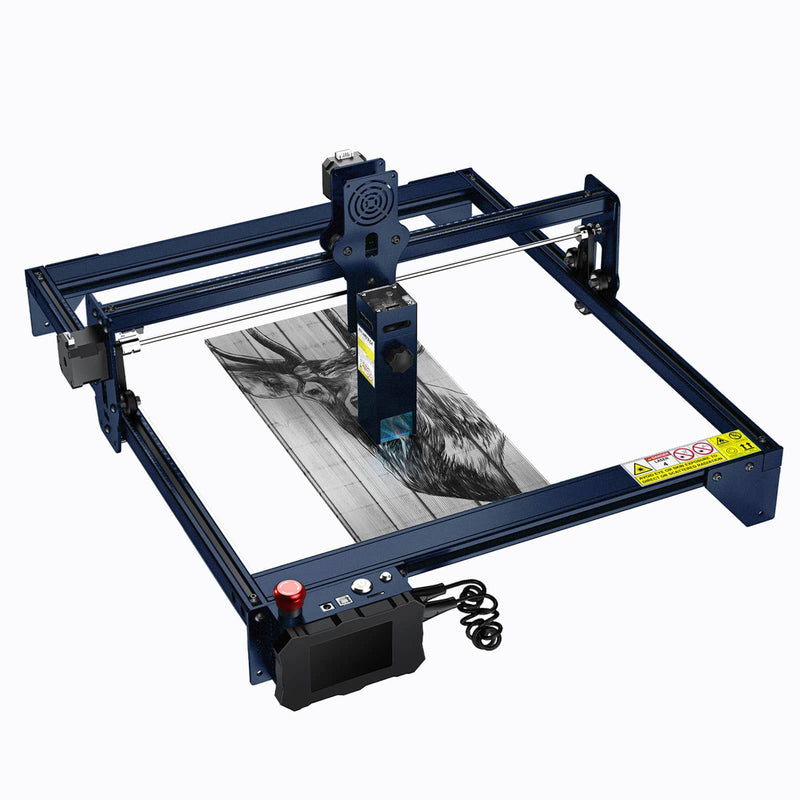

The Pergear LaserStorm S10 10W Laser engraver machine has an independent control terminal. The 32-bit mothboard can support offline working, making it more convenient to use. The engraving can be done without connecting to a computer. It has a WIFI module inside, so it can transfer engraved graphics without linking to a computer through a network cable. The offline engraving control terminal gas a newly designed UI interface and an upgraded operating system, which improves the interactivity and user experience, thereby making the overall operation easier and faser.
- Innovative dual compression spot coupling technology: Pergear S10 engraver machine adopts the double compressed spot coupling technology, which combines two 5W laser sources into a single 10W ultra-powerful light source with a reduced focal area of 0.08*0.06mm, which makes the laser power larger and more stable and easily cut 20mm thick wood panels as well as 15mm thick black acrylic.
- Advanced high-performance fixed-focus laser: No need to adjust the focus before engraving; The focal spot area of the new laser is only 1/3 of the spot area of other ordinary lasers. The Double-compressed spot technology makes the laser spot down to 0.06mm to achieve finer image engraving.
Wide Soft Compatibility: Pergear LaserStorm S10 is compatible with operating software such as LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10, and also support MAc system (LightBurn), engraving file format supports NC, BMP, JPG, PNG, DXF etc.
- Solid and easy installation structure design: The all-aluminum alloy anodized structure design makes the machine more durable, and improves the accuracy of engraving. The entire structure has been designed for quick assembly, and the assembly can generally be completed within 10-20 minutes. There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. 410x400mm large area engraving interval can meet your various engraving needs.
- Offline operation terminal with Emergency stop button: The offline engraving control terminal gas a newly designed UI interface and an upgraded operating system, which improves the interactivity and user experience, thereby making the overall operation easier and faser. It also has an emergency stop button, a limiter, a reset switch, and controls the engraving machine through physical buttons, further increasing the safety factor.
Carving material: wood, bamboo, cardboard, plastic, leather, PCB board, alumina, non-reverseElectroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;

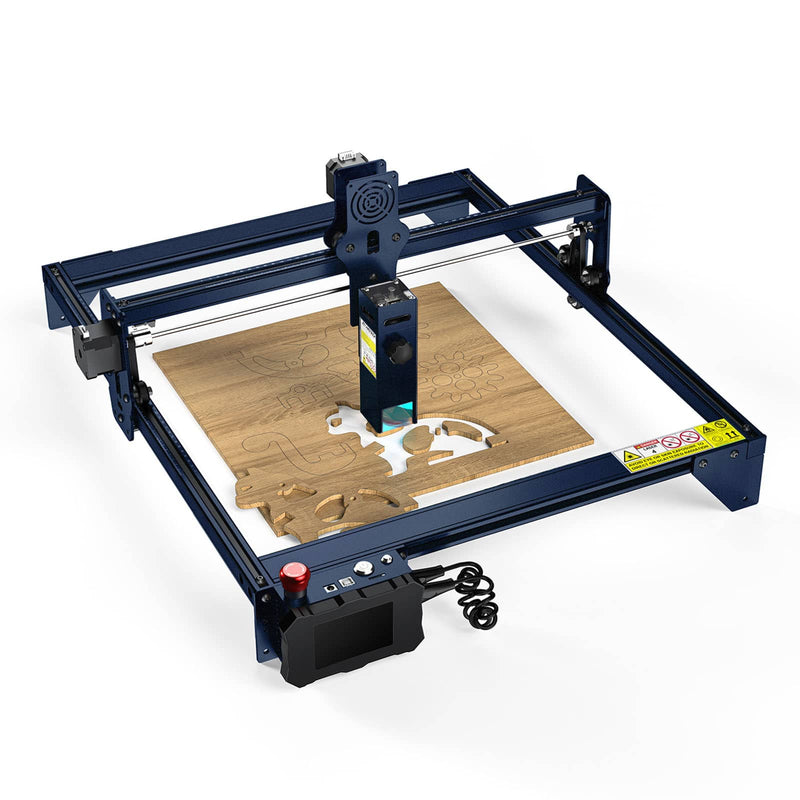

Cutting material: cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge.
|Laser Output Optical Power||10-11W|
|Connecting Interfaces||USB, Offline Use, WiFi|
|Focusing Type||Fixed Focus Laser, No Focusing|
|Operating Software||Laser GRBL, LightBurn, Win XP/7/8/10/11, Mac(LightBurn)|
Smart limit switch design: Limit switches are installed on both X-axis and Y-axis.
Integral screw rod: The machine uses an integrated screw rod instead of a combined coupling.
New laser with knob: It is more convenient and quick to adjust the height of the laser.
Enhanced metal, Engraving capability: Clearer engraving marks, faster engraving speed.
Offline working:The 32-bit mothboard can support offline working, making it more convenient to use
Panoramic filter coater glass: The innovative use of the coated filter glass ensures better visual permeability.
Precise scale lines axis :There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement.
Laser protective cover: There is a protective cover on the laser to protect the eyes of the user, with no need to wear additional goggles.
The stepping motor and the screw rod are integrated, which makes the movement of the laser more precise and the coupling more durable.
With a Horizontal gyroscope A tilt automatic stop: The Laser has a bulit-in horizontal gyroscope, when the laser head tilts more than 20°, it will automatically stop working.
Higher Laser power & Faster engraving speed:
Laser power: 10W
Engraving speed: 11000/min
cutting depth: 15mm
Eye protection: Yes
1* X-axis assembly
2* Section 57CM
2* Section 48CM
1* Control box
3* Support legs
1* 24V2A power adapter
1* Power switch line
1* USB cable
●When operating the laser engraving machine, please install the laser protective cover. If it is not installed, you need to wear goggles.
● Please do not touch the laser emitter with your hand, or it may burn your hand.
● Please avoid strong impact on the machine.
● Children under 14 are not allowed to use this product and children over 14 need adult supervision.
● The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
