Powerful High-speed Air Assist: S10 is equipped with a high-speed air assist nozzle. The difference of this nozzle is that it has an advanced fluid mechanics design to better utilize the air pressure. When using the same air compressor, the S10 spray airflow faster. For example, when using 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.
Ultra-thin High Density 10W Laser Beam Shaping Technology: The S10 laser output power is increased to 10W, which is twice that of the S9. But S10 obtains the same ultra-thin laser beam with 0.08mm focus as S9 , which means S10 has higher energy density, stronger cutting penetration and engraving capabilities.
Faster, Stronger, Cleaner: Combining advanced high-speed air assist and 10W high density laser, S10 shows comparable to industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, cut faster; Second, the cutting penetration is stronger, and many high-density woods can be cut; Third, the cutting surface is cleaner, the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object.
Industrial-grade Cutting Accuracy: S10 adopts industrial high-precision linear slide rail X-axis, which makes it get industrial-grade engraving accuracy. When comparing the small engraving details, S10 does not have the wave lines that other ordinary engraving machines appear.
More Advanced and Upgradable 32-bit Motherboard: The S10 motherboard uses 32-bit chips, with faster computing speed, and it still reserves Z-axis and limit switch functions to facilitate people to upgrade the engraving machine. It still perfectly supports laser cutting software like Lightburn and LaserGRBL.
Expandable Engraving Area: S10 keeps Y-axis expandable design like S9, the original engraving area is about 410x400mm, but you can buy S10 Y-axis extension kit to expand the engraving area to 410X940mm, which can help you get 230% of the engraving area at a very low price. This can help you better to deal with large-area engraving or cutting work.
Adjustable Laser Eye Shield: The S10 laser is equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don't need it, you can easily disassemble the eye shield.
Safe Design: There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency. The all-metal body makes the machine very sturdy and durable.
A4 Steel Pad: The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.
- Square Measuring Ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 400x400mm large-area engraving interval can meet your various engraving needs.

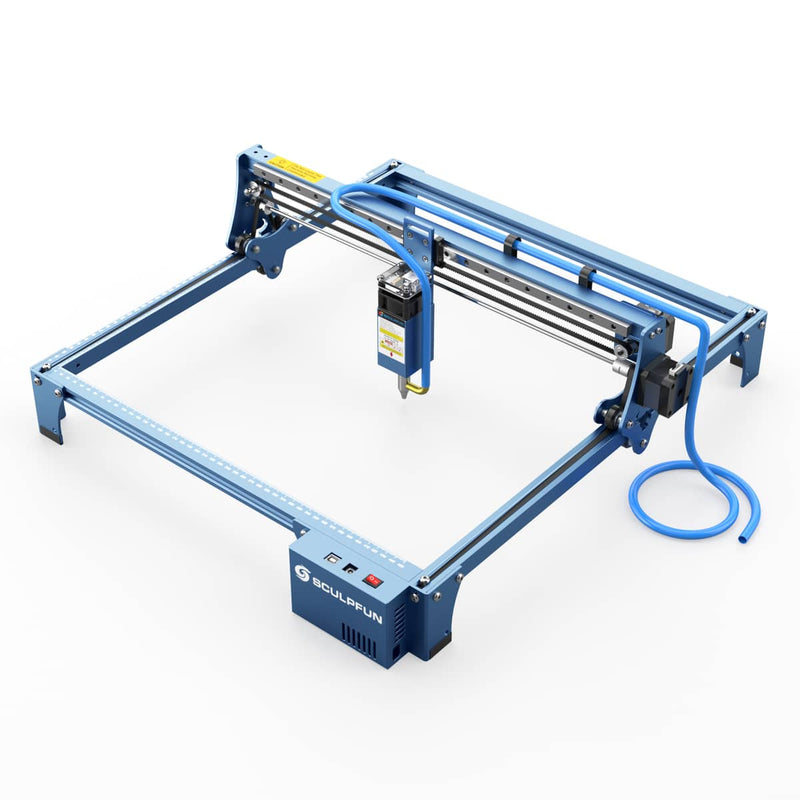

Product Model : SCULPFUN S10
Diode laser output power: 10W (note this is light energy not electrical energy)
Inner diameter of air pipe: 7.5mm (recommended to use 30L/min, 0.03Mpa air compressor, out diameter of nozzle:8mm)
Laser wavelength :455±5nm
Engraving accuracy: 0.01mm
Engraving area size: 410*400mm
Focusing method: fixed focus + sliding device
Laser protection cover: Equipped with a detachable laser cover to protect the eyes. You can adjust it up and down, or remove the cover.
Machine power consumption: about 36W (not related to engraving or cutting performance, just power consumption)
Engraving Material: all kinds of wood (including walnut, cherry and other high density wood), MDF,bamboo, cardboard, plastic, leather, PCB board, alumina, 304 stainless steel, ceramic, dark stone
Cutting Material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic, cardboard, bamboo, some plastic boards, leather,PCB boards
Laser Software: LaserGRBL, LightBurn, LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transfer method: USB connection
Power input: 100-240V AC, 50/60HZ Output: 12V 5A
Product weight: 3.42kg
Packing weight: 5.13kg
Packing size: 600*345*130mm
Certification: CE FCC RoHS FDA ICE certification
SCULPFUN S10 Engraving Machine Package List:
1× X-axis assembly
2 x X profiles
2 × Y profiles
1× Control Box Assembly
3 x Support feet
1× S10 laser
1× 12V 5A power adapter
1 x Power cord
1× USB cable
1× Air Tube
3× Tool bag
1× Laser Goggles
1× Test wood board
1 x A4 size metal pad
1 x User Manual
●Because of the powerful laser of S10, it is forbidden to run the engraving machine unattended. Pause it if you're not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult attended.
●Do not use the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
