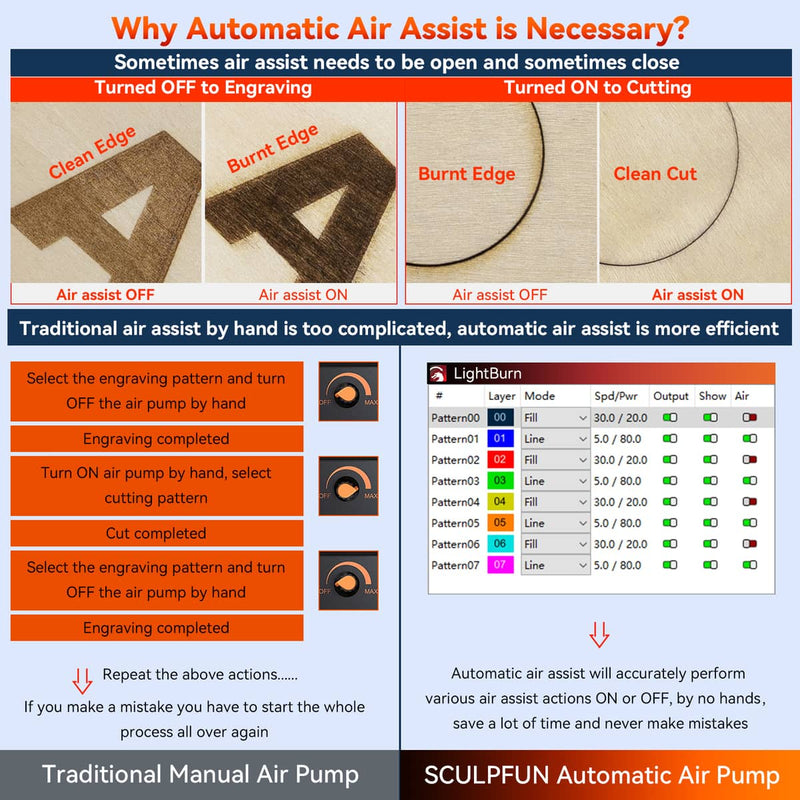

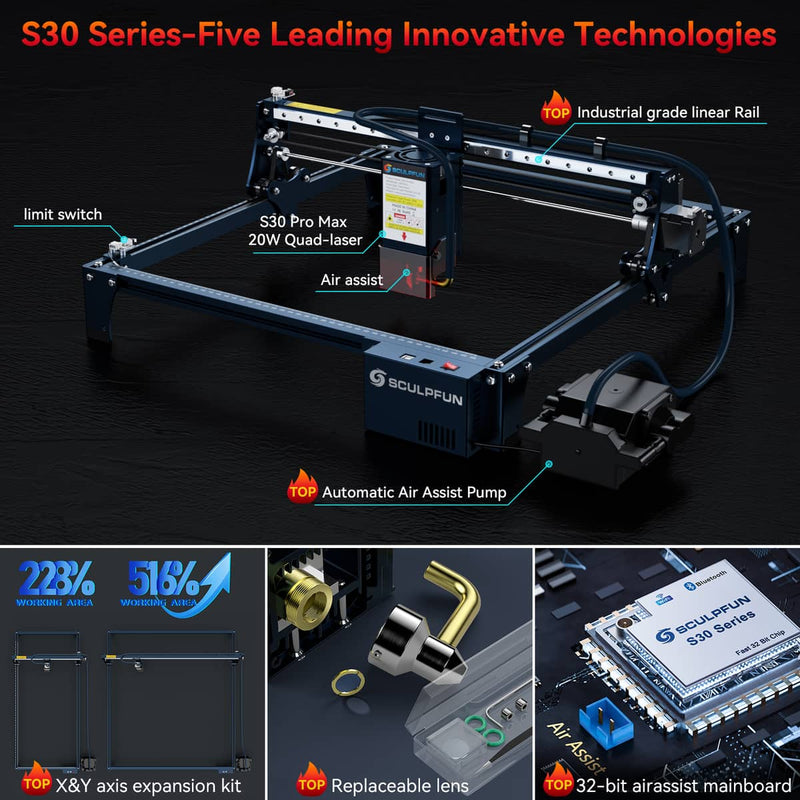

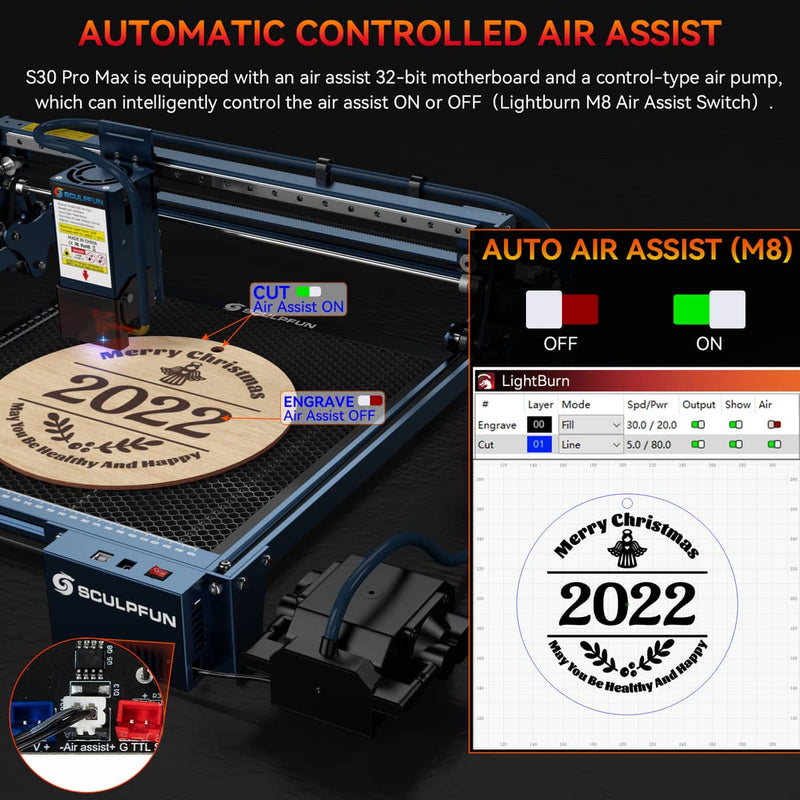

- Automatically controlled air assist system: The SCULPFUN S30 Pro Max is equipped with an airassist 32-bit motherboard and a control-type air pump, which can intelligently control the air-assist switch during engraving through the LightBurn software M8 button, this makes the engraving and cutting very clean, and is very suitable for the manufacture of exquisite gifts.

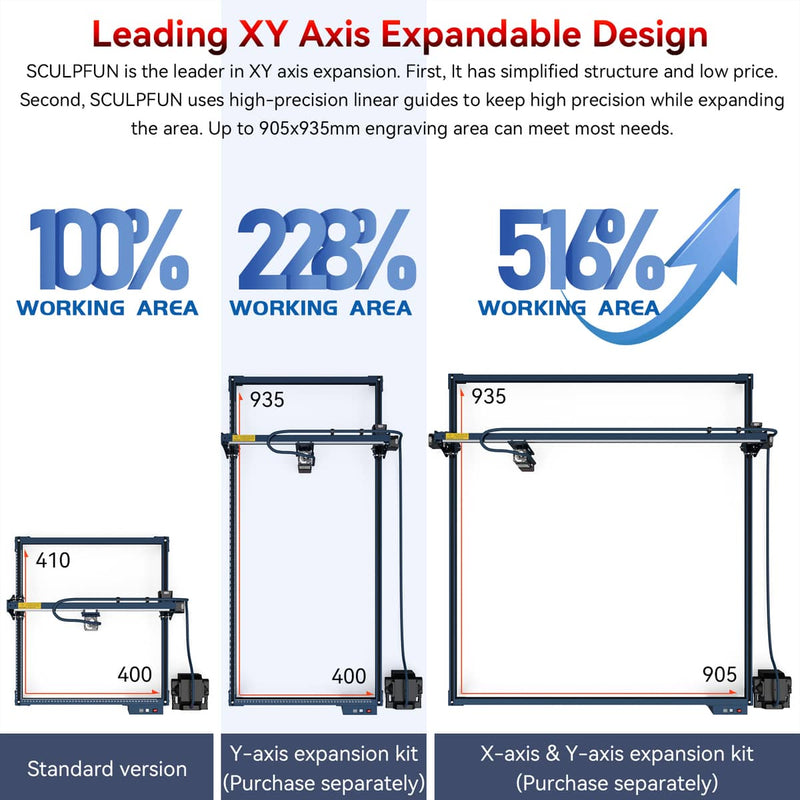

- Expandable engraving area on both XY axes: The S30 series adopts an innovative XY axis expandable design, the original engraving area is about 400x400mm, but you can purchase a Y-axis expansion kit to expand the engraving area to 935x400mm; purchase an XY-axis expansion kit to upgrade Up to 935x905mm huge engraving area.

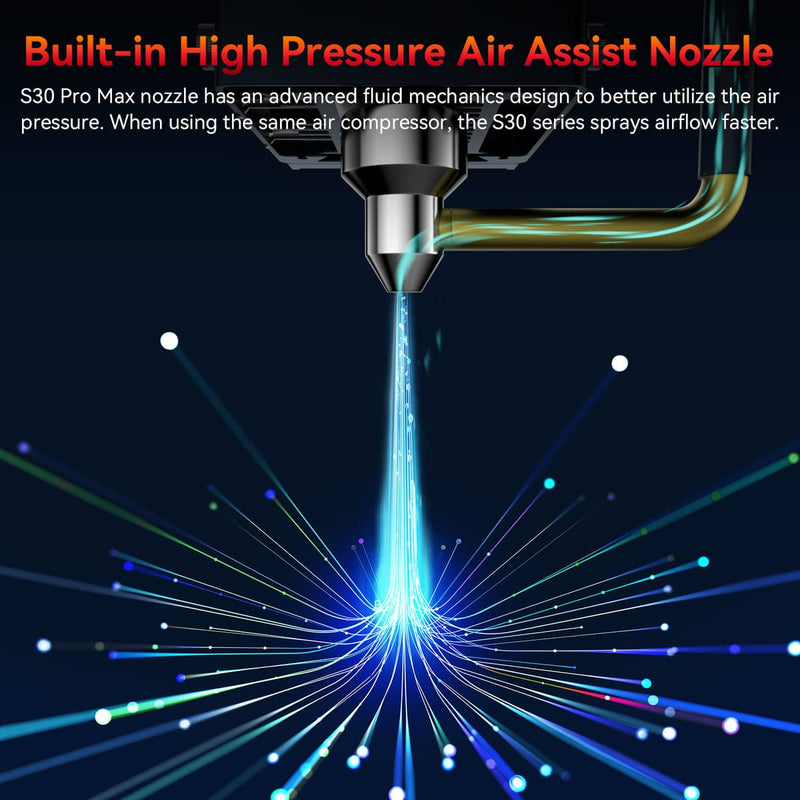

- Built-in high pressure air assist nozzle: equipped with advanced high-pressure air-assisted metal nozzle, greatly improving the cutting efficiency, and the cutting speed is more than 5 times faster than that without air assistance.

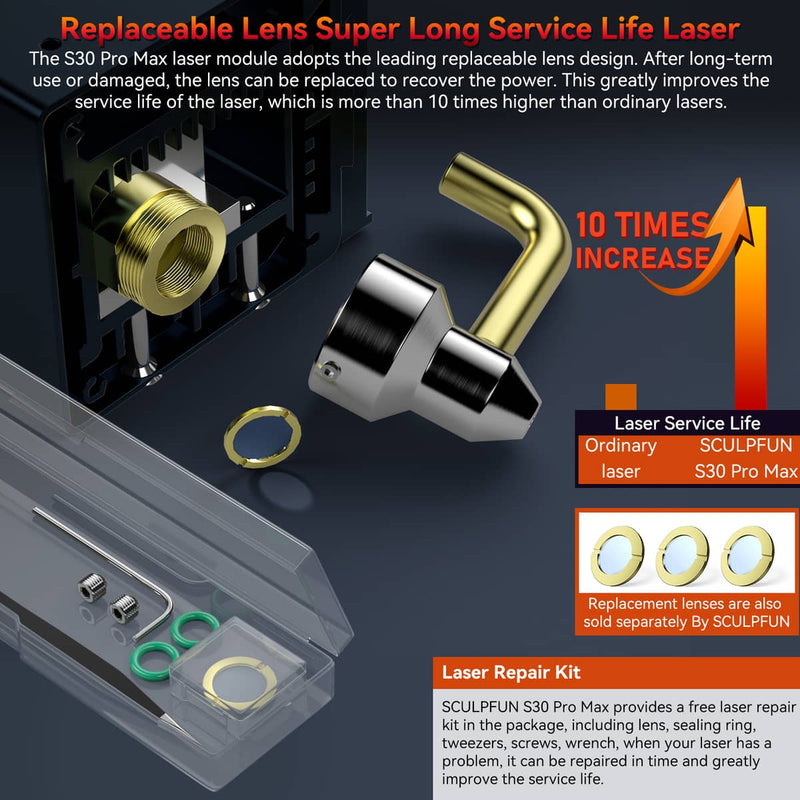

- Replaceable protective lens: S30 series laser adopts innovative replaceable lens. A free lens is included with the purchase, more lens can be easily purchased seperately.

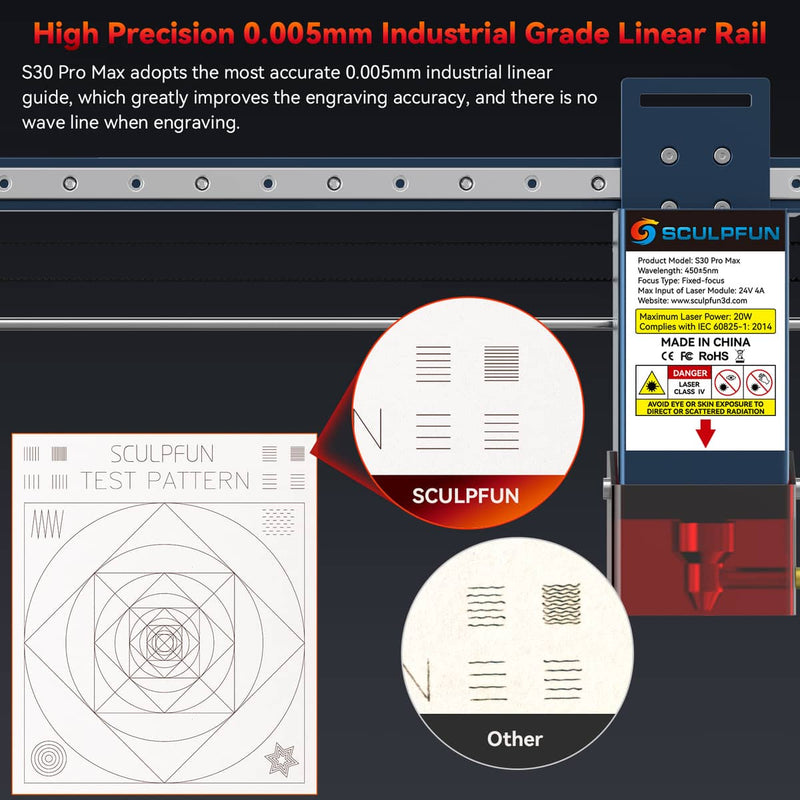

- Industrial-grade cutting accuracy: S30 series adopts extremely solid and high-precision linear slide rail X-axis, making it reach industrial-grade engraving accuracy. When comparing small engraving details, the S30 series does not have the wavy pattern that appears in ordinary engraving machines.
- Detachable laser eye shield: The S30 series is equipped with a detachable eye shield, which will not dazzle even without glasses. Also if you don't need it, you can easily disassemble it.

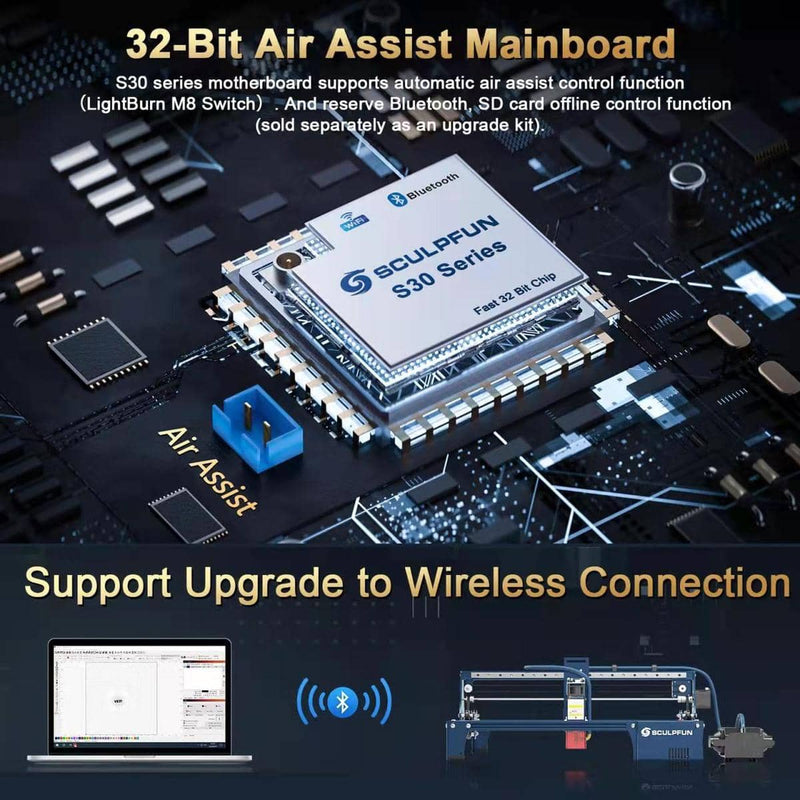

- Upgraded 32-bit air-assist motherboard: The latest 32-bit motherboard supports automatic air-assist control. Reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)

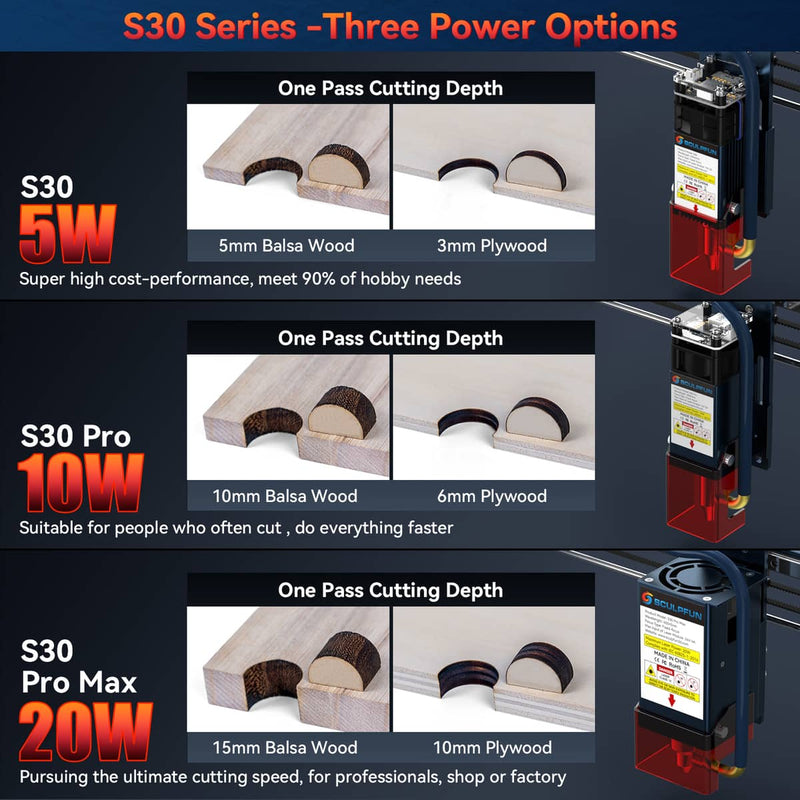

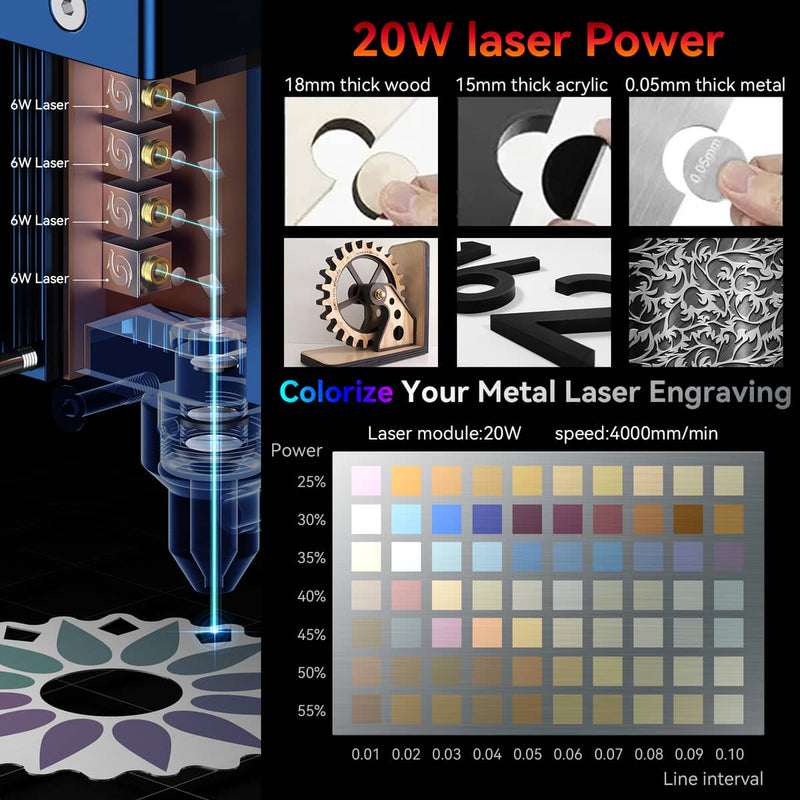

Diode laser output power: 20W (light energy, not electrical energy)
Laser focus: 0.08x0.1mm
Laser wavelength 455±5nm
Focusing method: fixed focus column + sliding device
Laser protection cover: Equipped with a detachable laser protection cover to protect the eyes. You can adjust it up and down, or remove the goggles.
Engraving accuracy: 0.005mm
Engraving area size: the standard version is 410*400mm, which can be expanded to 935x400mm or 935x905mm
Machine power: about 120W
Type: mainboard-controlled air pump, voltage 12V, flow 30L/min
Air hose inner diameter: 7.5mm
Motherboard: 32-bit air-assisted motherboard, reserve Bluetooth, SD card offline printing function. (Upgrade Kit sold separately)
Engraving material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, zigzag, cardboard, plastic, leather, PCB board, aluminum oxide, 304 stainless steel, ceramic, dark stone
Cutting material: all kinds of wood (including walnut, cherry and other high-density wood), MDF, acrylic board, cardboard, non-woven, bamboo, leather, some plastic boards, PCB boards
Operating software: LightBurn (with air assist function M8), LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, support Windows system, support MAC system. Supported file formats NC, BMP, JPG, PNG, DXF and other image formats.
Data transmission method: USB connection or Bluetooth wireless connection
Power Input: 100-240V AC, 50/60HZ Output: 24V 5A
Packing weight: 7.53kg
Packing size: 62.3*24*22.5cm
Certification: CE FCC RoHS FDA ICE certification

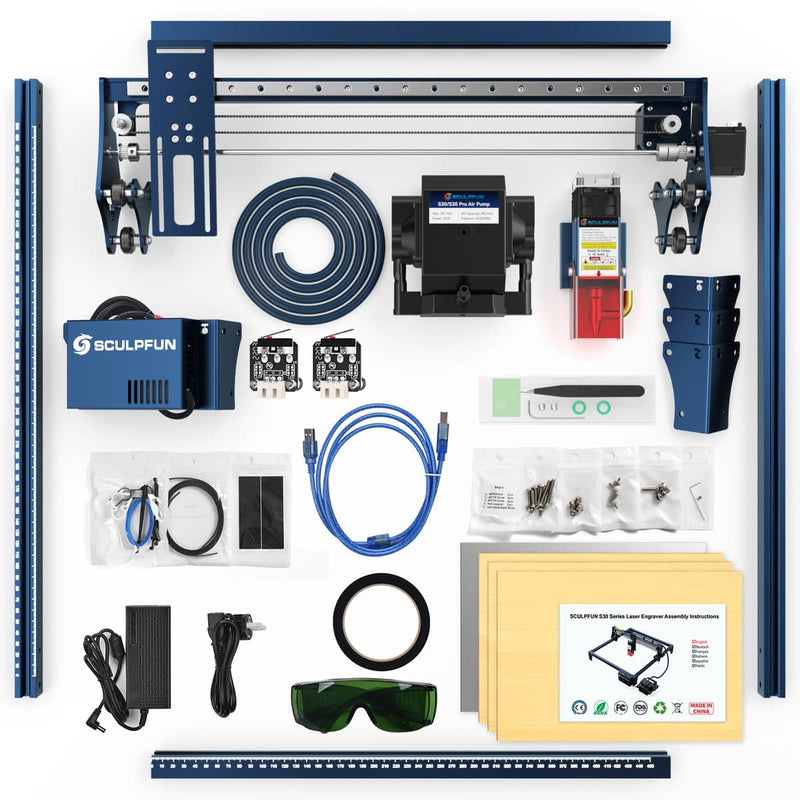

SCULPFUN S30 Pro Max engraving machine packing list:
1×S30 Po Max laser
1× Laser Repair Kit
1×12V automatic air pump
3 x A4 size 3mm wooden board
1×24V 5A power adapter
1 x power cord
1× Air tube
1× Installation Tool Kit
1× Laser Goggles
1 x A4 metal backing plate
Step 1-6 Install the package
1 x X-axis assembly
2 x X profiles
2 × Y profiles
1×Control Box Assembly
3 x support feet
●Because of the powerful laser power, it is forbidden to run the engraving machine without being supervised. Pause it if you're not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult supervision.
●Do not apply the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
