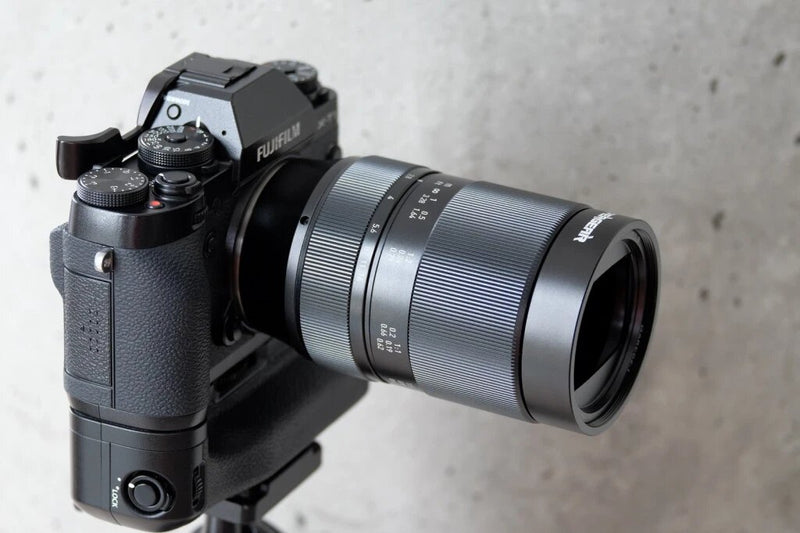

Review – Pergear 60mm F2.8 Early Prototype Lens Fuji X Mount by Yuko Steel

Today I’m sharing my impressions on Pergear 60mm F2.8 lens in Fuji X mount. The sample is provided by Pergear in April, and it is an early prototype. I also had time to shoot with it and chance to provide feedback on any discovered flaws few months ago, so hopefully they are fixed in a production line lens samples. I’ll mostly focus attention on generic mechanical and optical performance taking into account that it is not a perfect sample, but is good enough to get initial impresisons.

First of all – looks like Pergear 60mm F2.8 lens has SLR based optical design, and due to that there is about 1 inch mount section that is basically a built-in adapter for Fuji X mount. When I look into rear area – last glass element is positioned quite far insid from the rear mount, so this lens can be produced for various mounts inclusing popular DSLRs.

Second noticeable thing is the lens size. It is quite large and has noticeable weight as for 60mm lens, though all of that is a result of implementing 2:1 Macro focusing support. Pergear 60mm has compact optical formula when focused to infinity, and front element sits deep inside at that distance.Pergear 60mm review

When you focus closer to 1:1 Macro range, whole front optical module is moving toward the lens front.

Finally at 2:1 Macro focusing distance the front optics is near the filter thread area.

It is interesting to see slightly curved built in “hood-plate” to cut out stray light. Perhaps it is not rectangular to help OOF area look more smooth. However there is also one more important reason to have that front plate – to hide very long aperture control pin located in left-up area of front chamber when looking from the front.

Before I continue about mechanical build details, here are few image samples taken with this Pergear 60mm F2.8 and Fuji X-T1 camera.PERGEAR 60MM

PERGEAR 60MMPERGEAR 60MMPergear 60mm F2.8 lens has extremely smooth ant precise focusing with large and wide focusing ring. Though the focusing is great for macro and close up, but at far distance the focusing trow is just few degrees, so precisely focusing at far distance requires more patience and accurate ring moves.

Aperture ring does not have click stops, which makes the lens less expensive to produce, but is a feature that many photographers do not like, and I also prefer to have click stops. From the other side, the ring moves with noticeable effort and keeps its selected aperture value very well. It takes some time to get used that focus ring is located far and grabbing it instead of aperture ring when looking into viewfinder – that is my main complaint here, because aperture ring texture is same. What may help here is to add diamon-textured rubber ring on top of aperture ring, so it will be easier to recognize it by hand.

Speaking of overall build – Pergear 60mm F2.8 macro lens is constructed like a heavy armored tank – all metal with thick frame and moving parts. This prototype sample does not have protective glass in front area which I see in production sample pictures, and I was not able to unscrew the front nameplate to install internal filter glass, but filter thread allows to easily mount regulat protective filter.

Also this prototype sample had slight offset to Fuji X mount red dot by about 5mm radially. I think that should be fixed on production samples already.

Few more pictures of distant scenes.PERGEAR 60MMPERGEAR 60MM

And now back to macro shots. All pictures in ths articles are taken handhold, which means there may be some minor motion blurr. I have to admit that shooting at 2:1 Macro requires very bright light, steady hand and fast shutter speed. So I had to elevate ISO high very often, especially during rainy day. In many cases I had to hold fron lens barrel near the target by putting hand on the surface and holding lens for extra point of support. Definitely good tripod with macro rails is required for elevated precision and image quality as a results. Pergear 60mm F2.8 is front heavy, so you also need a robust Fuji X body made of magnesium alloy – like X-Tx series (I think X-T10 – X-T30 may not hold this lens well in some cases for precise super-macro).PERGEAR 60MMPERGEAR 60MMPERGEAR 60MMPERGEAR 60MM

What I like a lot is the way this Pergear 60mm F2.8 is rendering OOF area – it is very nicely blurred with pleasantly soft and smooth details that brings that 3D perspective to the scene.


Pergear 60mm F2.8 2:1 Macro lens is quite good affordable option to be able to take extremely close macro shots if you learn how to properly do it with noticeably large and heavy lens. There are more convenient but much more expensive alternatives on the market. Personally I like using this lens for taking extremely close-up pictures of lens disassembly, when it is put on a tripod and aperture is set to F8. Taking field outdoor macro pictures requires practice, tripod and perhaps extra artificial light for best results.PERGEAR 60MMPERGEAR 60MMPERGEAR 60MMPERGEAR 60MM

This lens is $30 off at Pergear now, and the discount will end at 28th Jul, order soon.
